Light Blue Tint Acrylic Cut To SizeCut to SizeCast Grade A
92%Light Transmission
1.19 g/cm³Density Rate
Class 3BS476 Flammability

Fabrication Tolerances

BS EN ISO 7823-1
Standard Saw Cut:± 0.5 mm
Precision CNC / Laser:± 0.2 mm
TRADE GRADE UV Stable 10-Yr Guarantee Perspex® & Plexiglas® Spec Equivalent

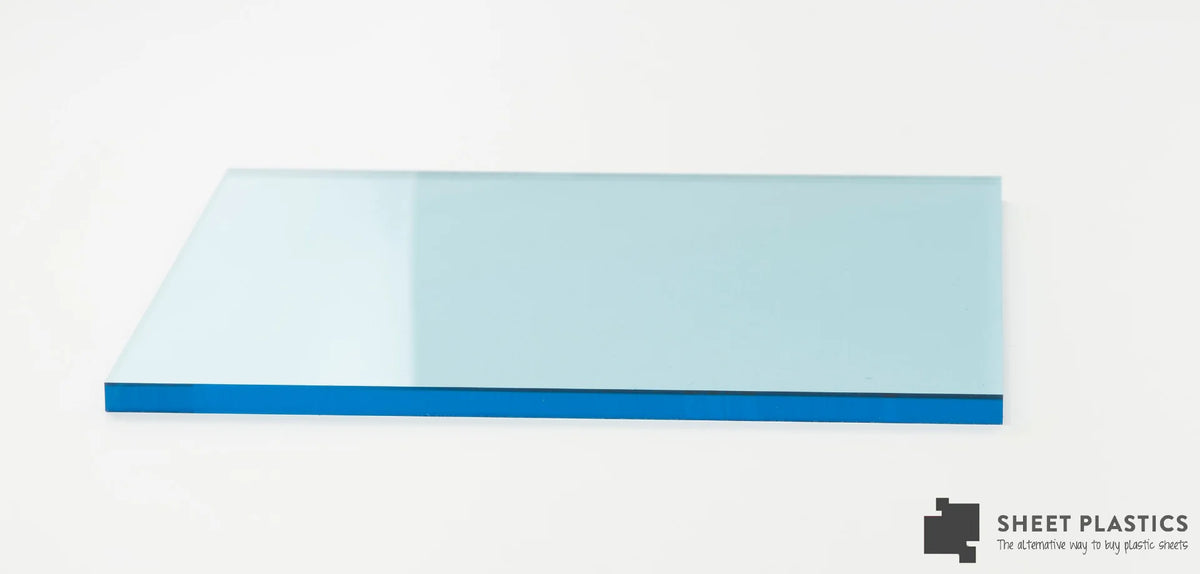

Light Blue Tint Acrylic Cut To Size

High optical clarity virgin polymethyl methacrylate (PMMA). Engineered for architectural glazing, bespoke point-of-sale display fabrication, cleanroom barriers, and precision industrial covers.

1. Select Thickness: 3mm

Full sheet: 3050 × 2030 mm

Precision Dimensional Calculator

Metric (mm)
Min 50 / Max 3040
mm
Min 50 / Max 2040
mm
Calculated Cut Surface Area: 0.72 m²
Approx. Weight: — kg

2. Edge Processing & Finishing:

Qty:
£0.00 ex-VAT
£0.00 inc-VAT (UK 20% VAT)
Save Cutting Schedule
Fast UK Dispatch: 24–48 hrs Full Sheet Pallet Discounts Active

Physical, Mechanical & Optical Properties

Standard reference testing conducted under ISO 527 / ISO 178 at standard temperature 23°C.

Optical Light Transmission — 92% (DIN 5036)
Tensile Strength — 75 MPa (ISO 527-2)
Rockwell Hardness — M 100 (ISO 2039-2)
Service Temperature — −40°C to +80°C
Flammability — Class 3 / UL94 HB (BS 476 Part 7)

Workshop Cutting, Routing & Drilling Advice

Use single-flute upward spiral carbide endmills for CNC routing. Leave protective film on during fabrication where possible. Allow thermal expansion clearance in framed installs.

Dimensional & Thickness Variation Schedule

• Standard Saw Cut: ± 0.5 mm
• Precision CNC / Laser: ± 0.2 mm

Commercial Trade Certification & CAD Resources

Request TDS and COSHH / RoHS sheets from our trade desk, or use the download links above when configured.
